3D Solid Modelling

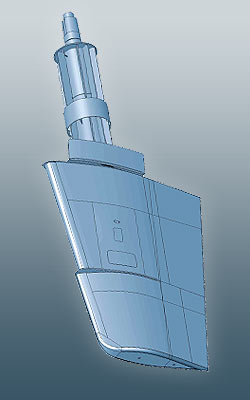

ibmv is committed to 3D solid modelling. 2D construction drawings are produced directly from the 3D CAD model. 3D solid models from ibmv include the following:

  • All components modelled as solid bodies

  • Articulation of parts and the mechanical function of the assembly is checked

  • Check for multiple components occupying the same volume

  • Automatic calculation of the materials used, centre of mass, moments of inertia, etc.

  • Surface and edge preparation for welding
